LED PAR 64 4x30W RGBW Alu Cast -IP65- Mk2
LED PAR floodlight designed for work in high humidity conditions, resistant to dust and rain. The enclosure has been classified as IP65 (different version uses a power connector in IP65 or IP44 class) which allows it to be used on outdoor events or as architectural lighting without fear of damage caused by weather conditions. Passive cooling system (no fan) also makes it a perfect solution in places where it is required to use completely silent lighting. The device has all the advantages of a standard 4x30 Flash Professional reflector with Mk2 Software
The newest series of products designed and made in Poland is a guarantee of quality and reliability. A number of modern features used in Flash Professional series, combined with robust construction, unique design and versatility provides ease of use and the highest quality of light effects in almost all conditions.
NEW! Extremely smooth change of brightness
16-bit brightness control resolution
Brightness control using two DMX channels allows to achieve an outstanding resolution - 65536 levels of brightness! Thanks to this the device is ideally suited for professional theater installations, stage performances and broadcast TV. The ability to control the brightness in the full range allows to achieve excellent results of smooth changes and enables the precise setting of the desired color from the basic colors.
Brightness control curves
The ability to choose different brightness control curves allows to achieve the effect of a very smooth transition between different levels of brightness with a standard 8-bit control (single DIMMER fader). By choosing curves such as "Log" or "S-Curve" user can achieve more natural, smooth dimming, which is more visible at low DMX values. Additionally, this feature opens up new possibilities in color mixing at low magnitudes.
Dim delay – bulb simulation
Delayed LEDs reaction to the DIMMER fader changes causes even greater smoothing of brightness changes - even with 8-bit controll (single DIMMER fader)! By enabling this feature and selecting one of the specially designed characteristic curves (eg. "S-Curve"), you can obtain a perfect dimming effect with no jump between levels!
NEW! The same colors in the entire Flash Professional series
The color palette available in a seperated DMX channel has been calibrated in a way that using various fixtures from Flash Professional series allows to get the same color - regardless of the kind and a power of diode. Thanks to this option you will light the entire space evenly, using the same light's color. The factory calibration of the white color's temperature in various fixtures allows for fast and stable white balance adjustment in television or film application.
NEW! Compatibility with professional broadcast TV equipment - PWM 3000Hz
The refresh rate equal to 3000Hz gives an excellent compatibility with a huge palette of professional and amateur cameras and television systems currently used worldwide. Using this fixture in the TV studio or to illuminate the film set you don’t’ need to worry about the blinking picture effect.
NEW! Color LCD 1,8” display
New, clear device menu - a convenient device function control is now available on the bright, color LCD display with a resolution of 160 x 128px. On the display you can easily change the mode, DMX channel, the speed of the built-in macros, enable advanced options and even read the user manual built into the device! Clearly visible DMX channel or macro number allows to inspect the operation of the device from a distance without having to approach him.
NEW! DMX channel modes – layouts for everyone
A lot of different DMX modes to choose from - ease of use for both those using the basic functions of the fixture as well as for advanced users. "Classic" modes is a well-known D-S-R-G-B-W channel mode. For users who require maximum flexibility we have prepared RGB and RGBW modes, and their 16-bit control equivalents.
Modern, authored electronics
The devices were equipped with DMX signal regeneration and electronic protection against overheating features, which allows for seamless installation without the need for additional electronics. The ability to select one of two modes for fan allows you to use the fixture eg. in conditions where the key criterion is a quiet work. If your priority is the full power at higher ambient temperatures – “Disco” mode will provide adequate cooling in tough conditions.
The unique, patented design
Outstanding design is one of the most characteristic features of Flash Professional Series. Together with high quality and robust design it makes the new product ideal choice for owners of small discos, clubs and large event organizers. Dedicated bracket with an ergonomic handle and multiple mounting holes provides a great convenience. The devices are characterized by high quality finish and reliability.
| -------- TECHNICAL DATA -------- | |
| Power supply voltage | 85-265V |
| Voltage frequency | 50/60Hz |
| Fuse | F5AL |
| Diode type | Standard LED (Single color) |
| Diode power | 30W |
| Display | Color LCD |
| Number of diodes | 4 |
| -------- UTILITY DATA -------- | |
| Color | White |
| Luminous flux | 7m - 57 lx, 5 m - 113 lx, 3 m - 311 lx |
| Dimming | Linear: 0 - 100% |
| Flash frequency (min) | 1Hz |
| Flash frequency (max) | 20Hz |
| DMX standard | DMX 512 |
| Control interface | 4 buttons |
| Operating modes | DMX512, Manual, Auto, Sound-controlled, Master / Slave |
| Features | 16-bit brightness control, smooth brightness control (selectable control characteristic curve), bulb simulation (delayed response to brightness change) DMX signal regeneration, Electronic protection against overheating |
| -------- INTERFACES -------- | |

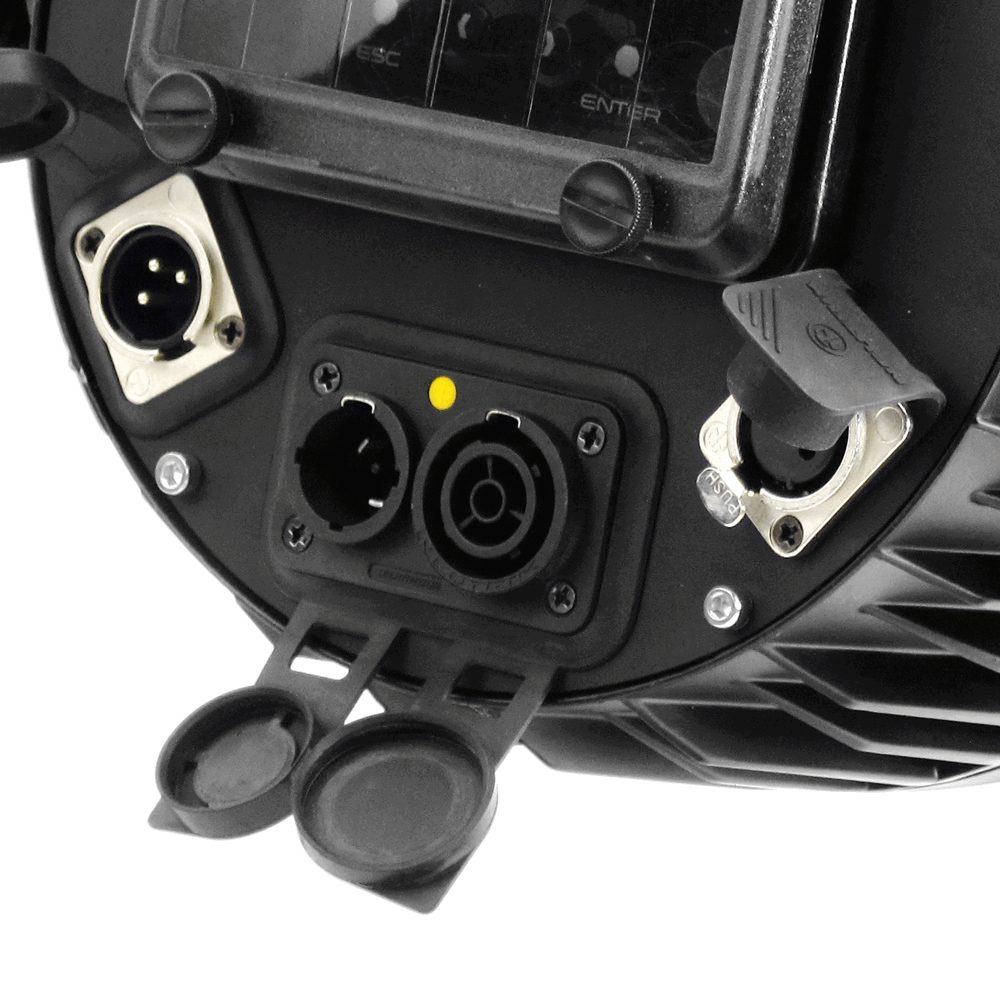

| AC IN | dedicated IP65 power plug |
| AC OUT | dedicated IP65 power plug |
| DMX IN | dedicated IP65 DMX plug |
| DMX OUT | dedicated IP65 DMX plug |
| ----- PHYSICAL CHARACTERISTICS ----- | |
| IP Rating | IP65 |
| Housing made | Aluminum |
| Cooling | Passive |
| Height [cm] | 29 - (witch packaging 32 cm) |
| Width [cm] | 29 - (with packaging 32 cm) |
| Depth [cm] | 17 - (with packaging 23 cm) |
| Weight [kg] | 4,4 |
