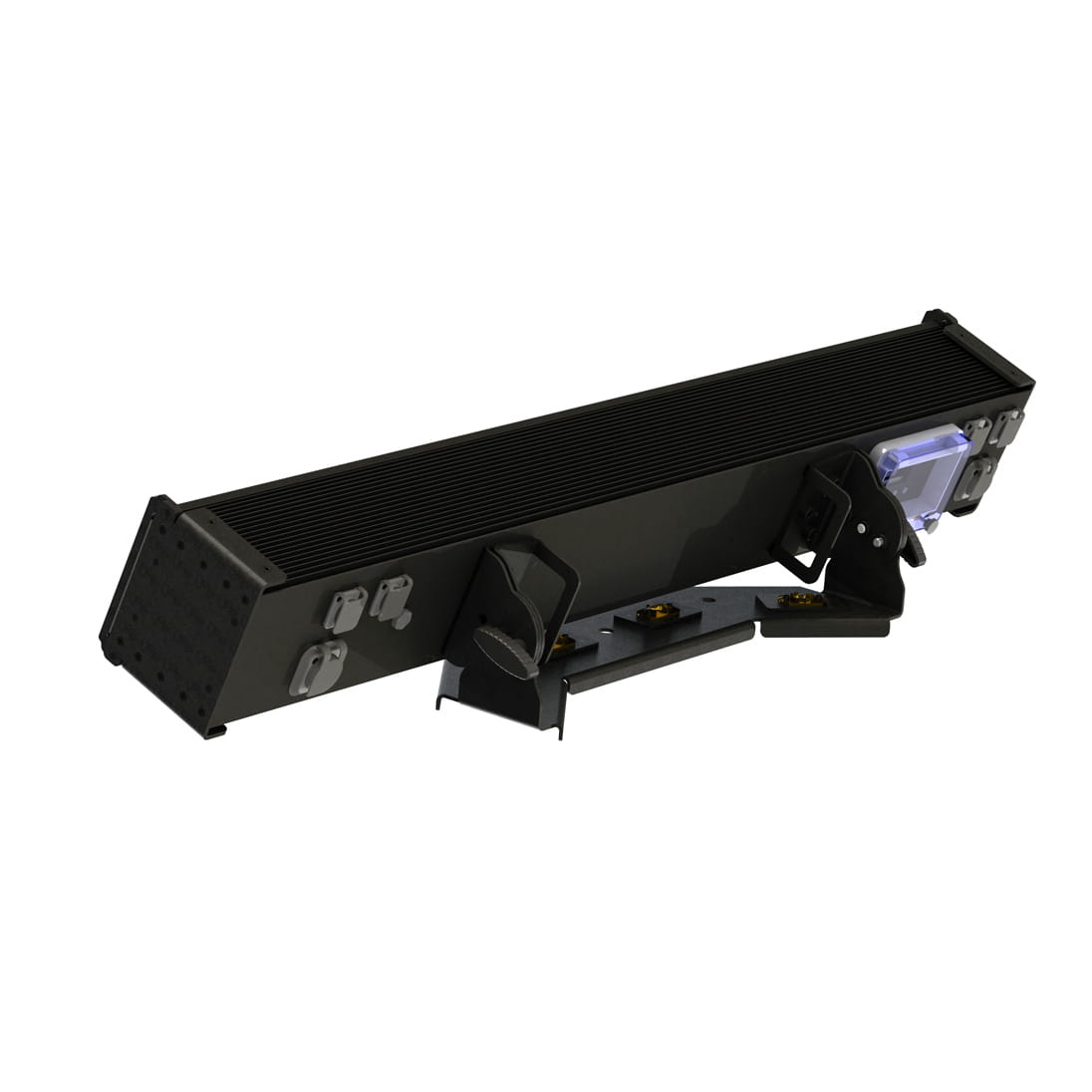

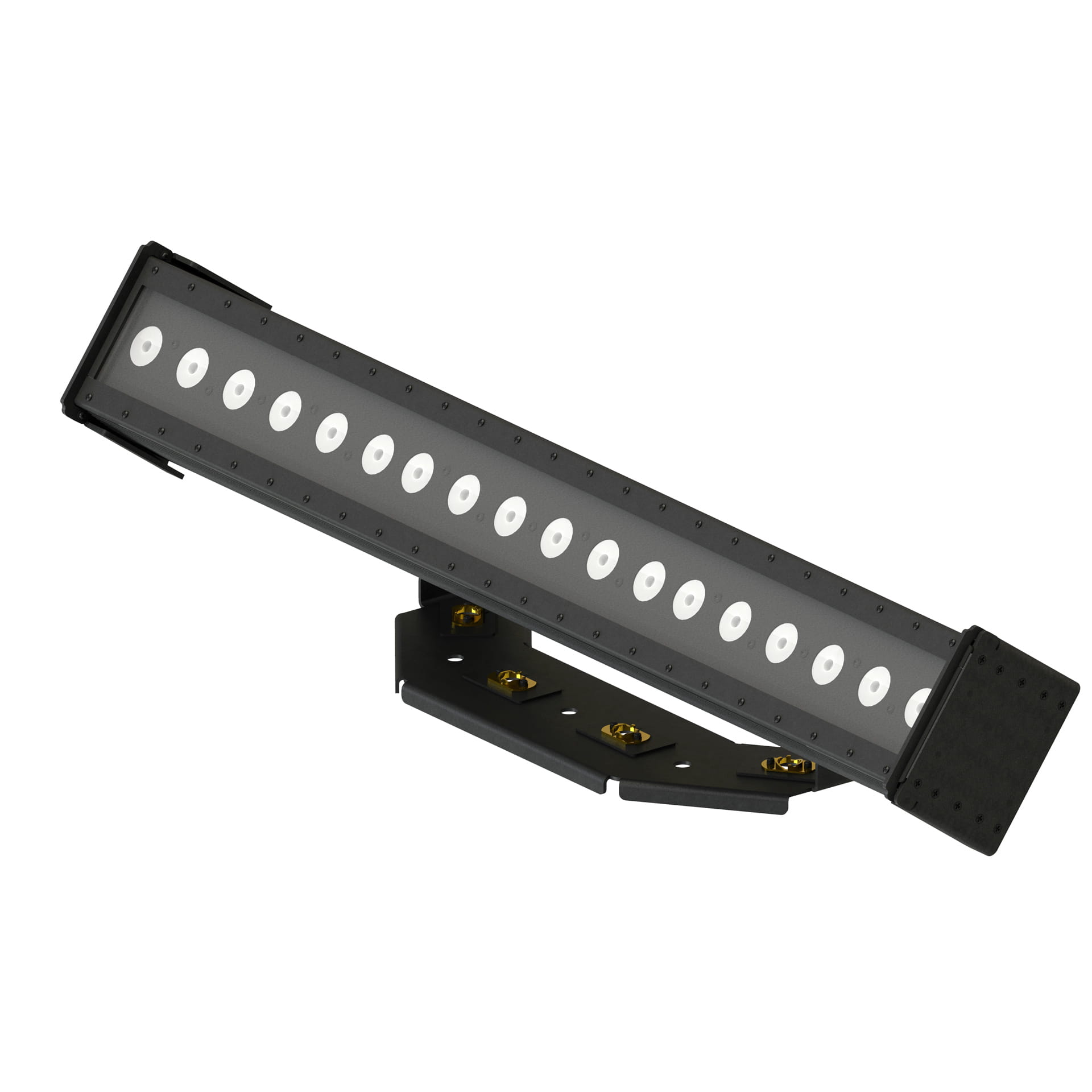

LED LINEAR 1810 45° IP

-------- TECHNICAL DATA --------
Power consumption 200W
Power supply voltage 100 - 245V
Voltage frequency 50/60Hz
Fuse F5AL
Diode type 4in1
Diode power 10W
Display Color LCD
Number of diodes 18
-------- UTILITY DATA --------
Color RGBW
Luminous flux 13 086 lm
Beam angle (min) 45°
Beam angle (max) 45°
Dimming Linear: 0 - 100%
Flash frequency (min) 1Hz
Flash frequency (max) 20Hz
Number of DMX channels 21 modes
DMX standard DMX 512
Control interface 4 buttons
Operating modes DMX512, Manual, Auto, Sound-controlled, Master / Slave
Features 16-bit brightness control, smooth brightness control (selectable control characteristic curve), bulb simulation (delayed response to brightness change) DMX signal regeneration, Electronic protection against overheating.
-------- INTERFACES --------
AC IN dedicated IP65 power plug
AC OUT dedicated IP65 power plug
DMX IN dedicated IP65 DMX plug
DMX OUT dedicated IP65 DMX plug
----- PHYSICAL CHARACTERISTICS -----
IP Rating IP65
Housing made ABS
Cooling Passive
Height [cm] 8 - (with packaging 16 cm)
Width [cm] 99 - (with packaging 107 cm)
Depth [cm] 17 - (with packaging 22 cm)
Weight [kg] 14,4
