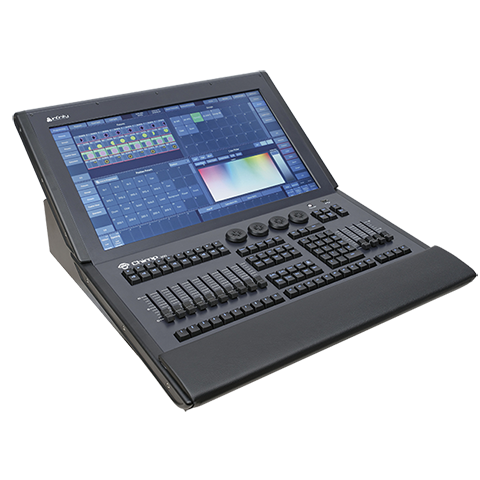

Infinity Chimp 300

The Infinity® Chimp 300 DMX controller offers 4 universes/2048 channels DMX for up to 300 fixtures. It already contains an integrated 22″ full HD touch screen and you can connect an additional external touch screen providing familiar, easy to use screens. Industry standard programming syntaxes via encoders & hard keys allow you to quickly program a great show. Whether it’s touring, theatre, multipurpose venue, education, or house of worship – Chimp light controllers provide all the necessary tools.



INFINITY CHIMP 300 SPECIFICATIONS

TECHNICAL FEATURES:

• Familiar keys, numeric keypad and 4 Encoders
• 10 Playback faders with Go, Pause/Reverse, Flash keys on multiple pages
• 10 Executer/Flash keys on multiple pages
• Color picker, Swatchbook by Lee, Rosco and Apollo Filters
• Gobo Picker
• User definable groups and presets
• User definable display layout
• 4 user definable master faders
• Effects engine
• Built in Fixture library and Fixture builder
• Cue list screen

CONNECTORS

• 4 x DMX 5-pin opto-isolated in/outs (RDM ready)
• RP-SMA W-DMX antenna output (*)
• Ethernet/Artnet
• HDMI monitor out
• Midi In/Thru/Out 5-pin DIN
• Audio/SMPTE/LTC Input 3-pin XLR
• IEC Power Supply Input
• 2 x Dimmable Desklight outputs 3-pin XLR
• 2 x USB-B connectors

PHYSICAL

• Housing: Metal & flame-retardant plastic side covers
• Dimensions: 647 x 575 x 279mm (L x W x H)
• Weight: 18Kg
• Ambient Temp. Range: -5 ~ 40°C
• Display: 22 inch 1920×1080 Hull HD Touch screen

SOFTWARE

• 4 universe 2048 channels DMX
• 300 Fixtures
• 10000 memories
• 400 memory stacks
• 100 groups
• 9 x 100 presets (position, color, beam, effects, etc.)
• Output visualizer
• Tracking and non-tracking options
