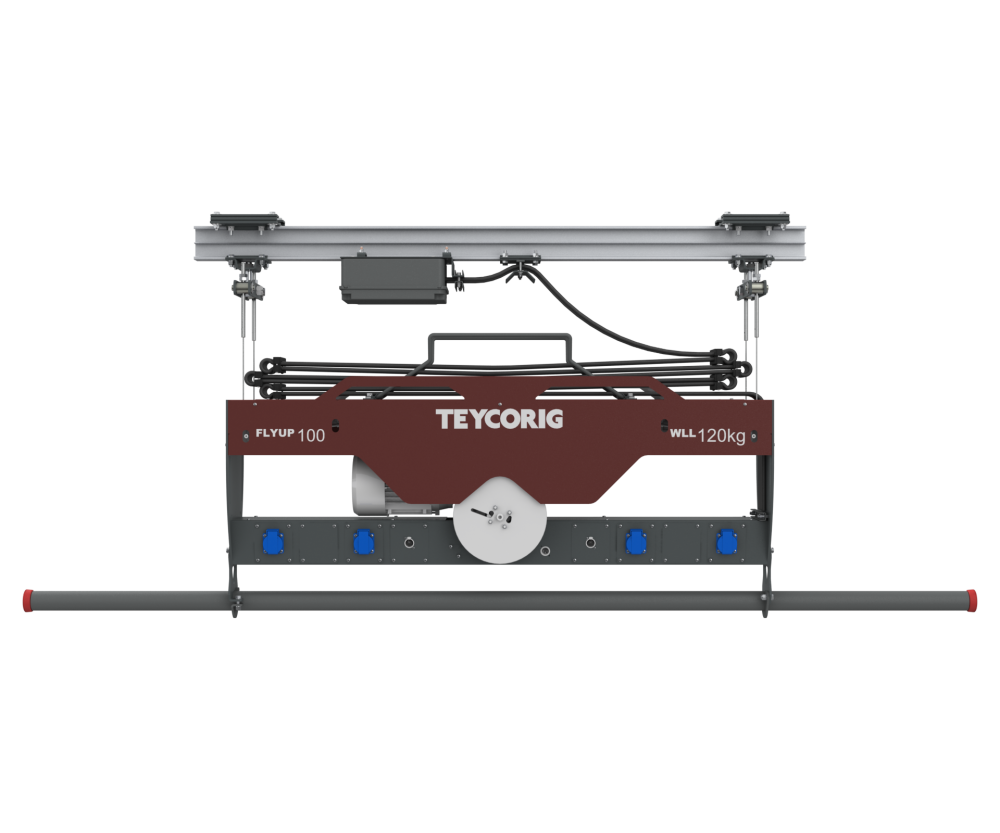

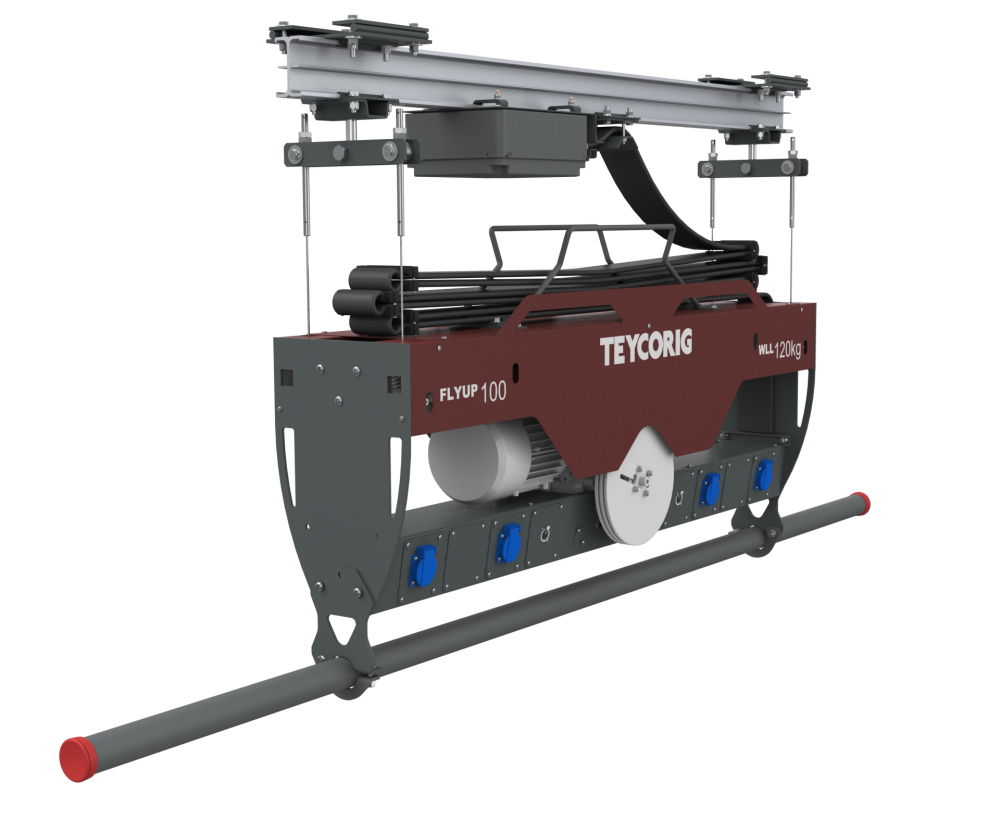

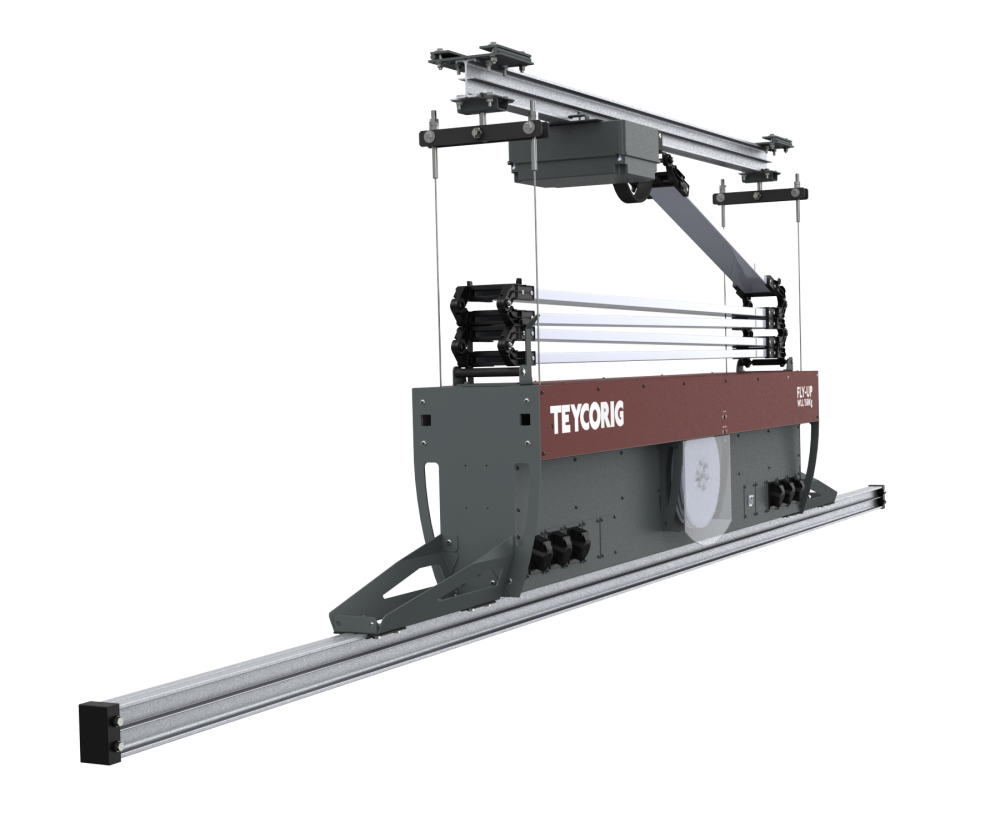

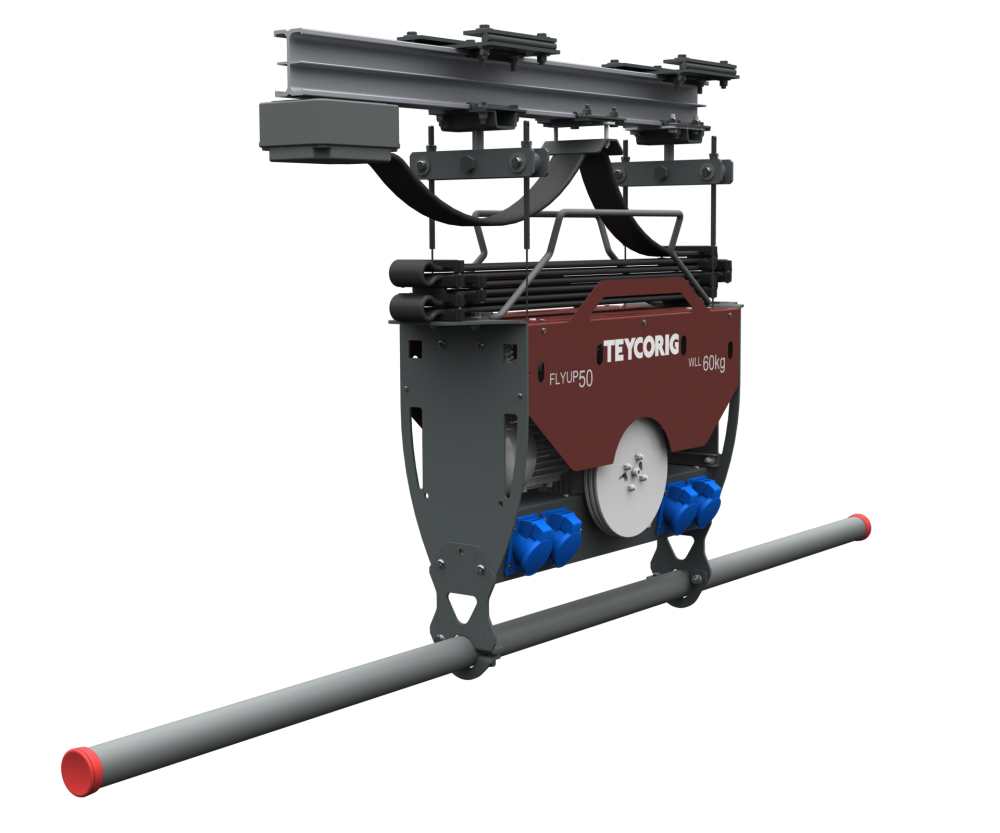

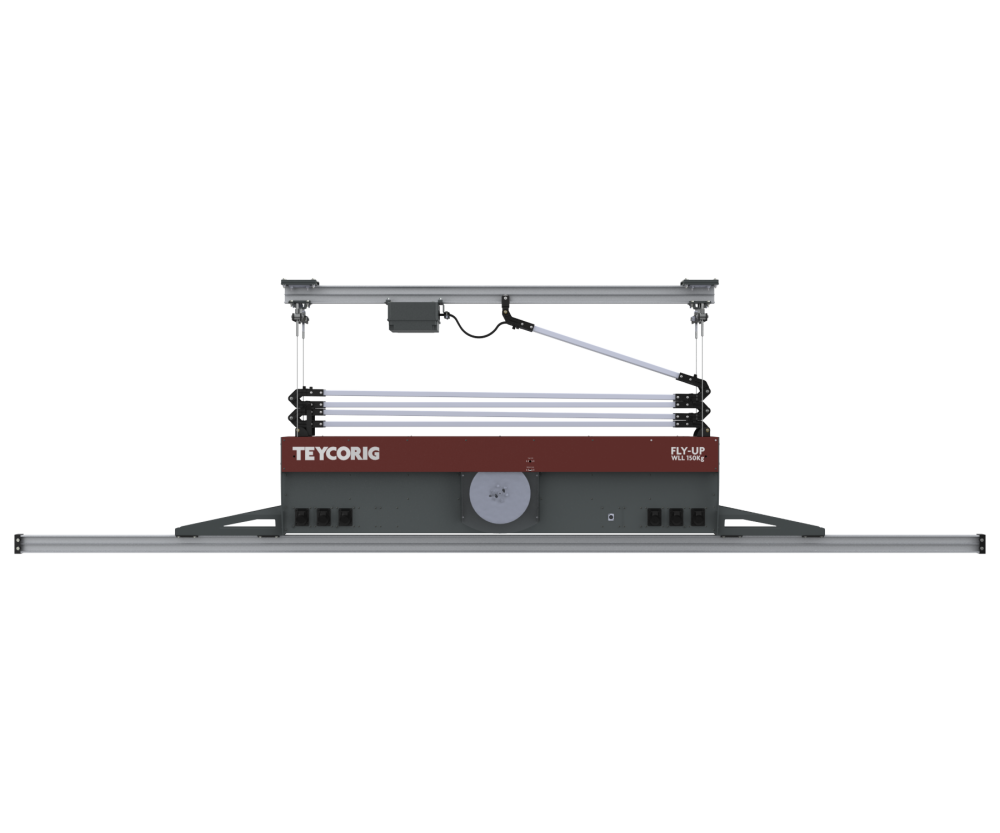

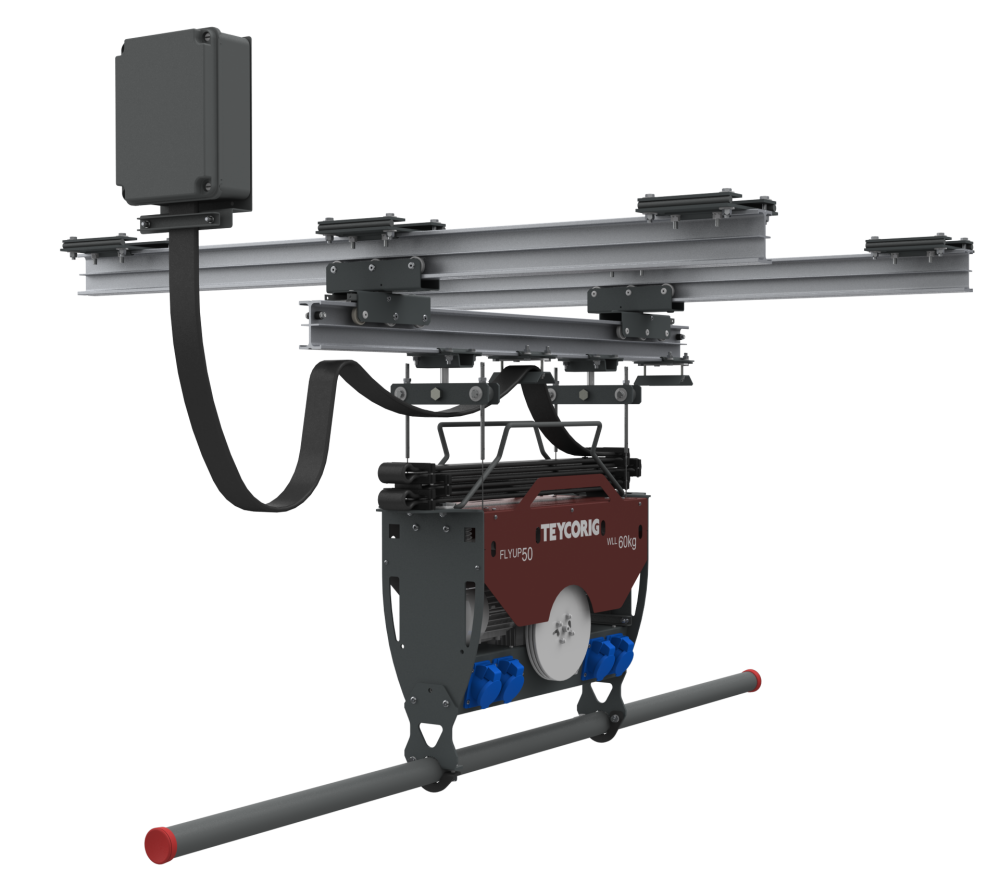

Thiết bị nâng hạ TEYCORIG Hoist Fly Up
.png)
.png)
.png)
.png)
.png)
.png)
Self Climbing Hoist 50/100/200, the best solution for medium or large television studios, theaters or auditoriums.
Supplied with pre-assembled connections, ready for installation.
The modularity of the same and the variety of accessories such as brackets, trolleys, lighting slats, sockets and circuits to meet every need.
The modularity of the same and the variety of accessories such as brackets, trolleys, lighting slats, sockets and circuits to meet every need.
| HFU050 | HFU100 | HFU200 | |
| Maximum drop | 13000 mm | 13000 mm | 16500 mm |
| Steel rope | 4x2.5 m | 4x3.2 mm | 4x4 mm |
| Security factor | 10 | 10 | 10 |
| Maximum capacity | 60 kg | 120 kg | 200 kg |
| Height when closed | 500/600 mm | 750/1200 mm | 800/1200 mm |
| Speed | 6/9 m / min | 6/9 m / min | 6/9 m / min |
| Engine power | 0.37 Kw | 0.75 Kw | 1.5 / 1.85 Kw |
| Single brake | Standard | Standard | Standard |
| Double brake | On request | On request | On request |
| Inverter for variable speed | On request | On request | On request |
